高德地图位置预览可以包含途径点

2019-08-03 29 0 admin 所属分类:HTML

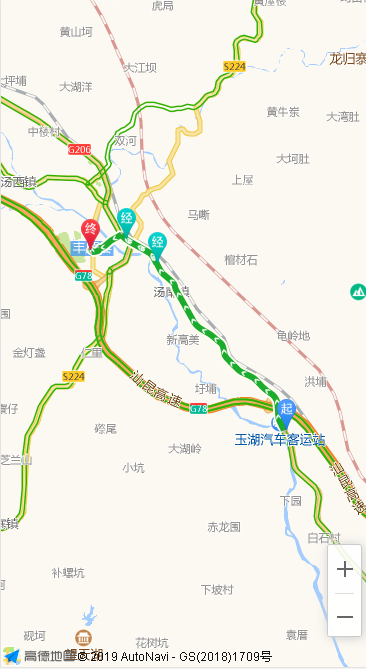

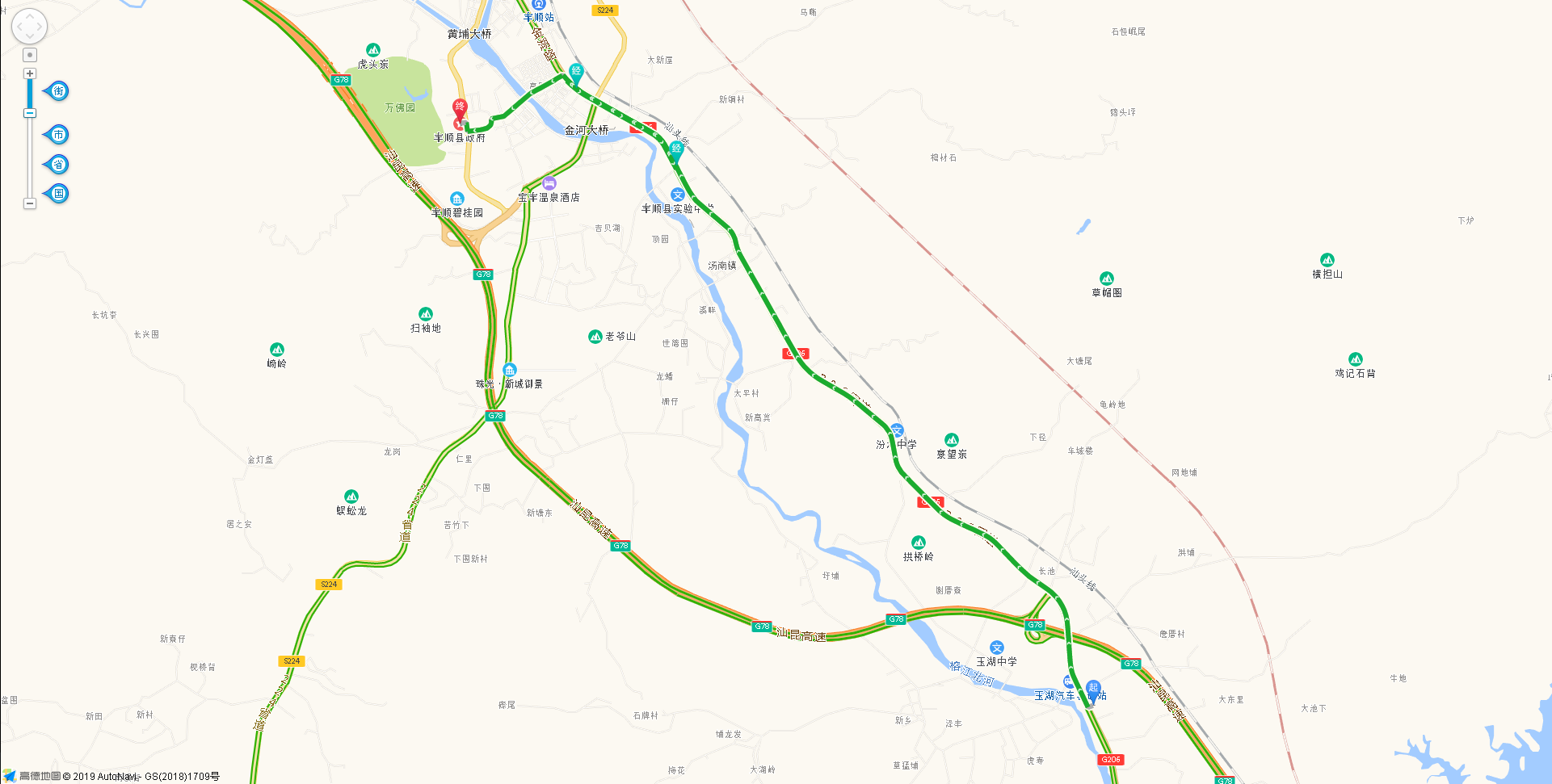

用一个静态页显示地图预览面包房多个途径点。如下图所示



调用请求地址如下格式

https://xxx/preview.html?from=116.249124,23.682794&to=116.181896,23.739365&way=116.194216,23.742785|116.204894,23.735248

使用到的技术

地图导航

JS立即执行表达式  (JS不允许函数外部调用 return 语句)

(function(){
      //立即执行表达式
})();

请求参数解析 getQueryVariable

<!doctype html>
<html>

<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
    <title>途经点预览</title>
    <style>
        html,
    body,
    #container {
    width: 100%;
    height: 100%;
}

#panel {
    position: fixed;
    background-color: white;
    max-height: 90%;
    overflow-y: auto;
    top: 10px;
    right: 10px;
    width: 280px;
}

#panel .amap-lib-driving {
    border-radius: 4px;
    overflow: hidden;
}

#panel {
    display: none;
}
    </style>
    <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" />
    <script src="https://a.amap.com/jsapi_demos/static/demo-center/js/demoutils.js"></script>
    <script type="text/javascript" src="https://webapi.amap.com/maps?v=1.4.15&key=你的密钥&plugin=AMap.Driving"></script>
    <script type="text/javascript" src="https://cache.amap.com/lbs/static/addToolbar.js"></script>
</head>

<body>
    <div id="container"></div>
    <div id="panel"></div>
    <script type="text/javascript">
        var map;

        function getQueryVariable(variable) {
            var query = window.location.search.substring(1);
            var vars = query.split("&");
            for (var i = 0; i < vars.length; i++) {
                var pair = vars[i].split("=");
                if (pair[0] == variable) {
                    return pair[1];
                }
            }
            return (false);
        }

        function is_null(str) {
            if (str == '' || str == false || str == undefined) {
                return true;
            } else {
                return false;
            }
        }
        (function() {
            var point_from = getQueryVariable('from');
            if (is_null(point_from)) {
                alert('请输入起始点坐标');
                return false;
            }
            point_from = point_from.split(',');
            var qishi_dian_lng = parseFloat(point_from[0]);
            var qishi_dian_lat = parseFloat(point_from[1]);
            var point_to = getQueryVariable('to');
            if (is_null(point_to)) {
                alert('请输入终点坐标');
                return false;
            }
            point_to = point_to.split(',');
            var mudi_dian_lng = parseFloat(point_to[0]);
            var mudi_dian_lat = parseFloat(point_to[1]);
            var center_dian_lng = (qishi_dian_lng + mudi_dian_lng) / 2;
            var center_dian_lat = (qishi_dian_lat + mudi_dian_lat) / 2;
            var point_ways = getQueryVariable('way');
            var way_dian_lng = [];
            if (!is_null(point_ways)) {
                let temp = point_ways.split('|');
                for (var i = 0; i < temp.length; i++) {
                    let t = temp[i].split(',');
                    way_dian_lng.push([parseFloat(t[0]), parseFloat(t[1])]);
                }
            }
            //基本地图加载
            map = new AMap.Map("container", {
                resizeEnable: true,
                center: [center_dian_lng, qishi_dian_lat], //地图中心点
                zoom: 13 //地图显示的缩放级别
            });
            //实时路况图层
            var trafficLayer = new AMap.TileLayer.Traffic({
                zIndex: 10
            });
            map.add(trafficLayer); //添加图层到地图
            //构造路线导航类
            var driving = new AMap.Driving({
                map: map,
                panel: "panel"
            });
            var waypoints = [];
            for (var i = 0; i < way_dian_lng.length; i++) {
                waypoints.push(new AMap.LngLat(way_dian_lng[i][0], way_dian_lng[i][1]));
            }
            // 根据起终点经纬度规划驾车导航路线
            driving.search(new AMap.LngLat(qishi_dian_lng, qishi_dian_lat), new AMap.LngLat(mudi_dian_lng, mudi_dian_lat), {
                waypoints: waypoints
            }, function(status, result) {
                console.log(status)
                console.log(result)
                // result 即是对应的驾车导航信息,相关数据结构文档请参考  https://lbs.amap.com/api/javascript-api/reference/route-search#m_DrivingResult
                if (status === 'complete') {
                    // log.success('绘制驾车路线完成')
                } else {
                    alert('路况复杂,导航规划失败:' + result);
                    // log.error('获取驾车数据失败:' + result)
                }
            });
        })();
    </script>
</body>

</html>

原始文档

uniapp 小程序 相关方法

// 用web浏览器打开指定网址
openUrl(url) {
    this.goto('/pages/web/web?url=' + url);
},
previewMap(point_from, point_to, point_ways) {
    let url = this.SITE + 'static/map/preview.html?from=' + point_from + '&to=' + point_to + '&way=' + point_ways;
    this.openUrl(encodeURIComponent(url));
},

webview页面

<template>
    <view>
        <view class="">
            <web-view :src="url"></web-view>
        </view>
    </view>
</template>

<script>
    export default {
        data() {
            return {
                url: ''
            }
        },
        onLoad(e) {
            this.url = e.url;
            console.log(this.url);
        },
        methods: {}
    }
</script>

<style>
</style>
